Choose the category of coil you are interested in replacing, for a list of appropriate blank coil drawings.

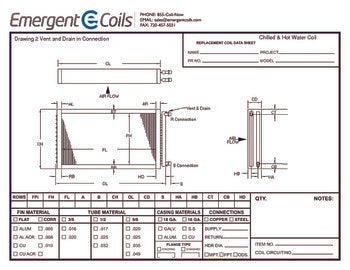

Thank you for visiting our drawing page. Above is a list of all the coils we have on file. We offer a wide variety of drawings for the heat exchanger coil that you are in need of replacing for your hvac air handler. We offer blank drawings to be filled out in the field to ensure we get the exact coil build for you. No matter if it's a chilled water coil, hot water coil, steam coil, steam distribution coil, condenser coil or evaporator coil we got you covered. If there is any design that is missing please let us know.

Coil Tip: Casing Types

Galvanized casings are acceptable for many applications (and less expensive), however Stainless Steel is more resistant to corrosion and rusting. If you have a corrosive airstream or are performing dehumidification, Stainless Steel may be a superior choice.
