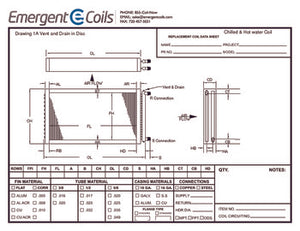

water coil blank drawing

Take these forms to the job site or coil installation location. These can serve as a measuring guide for replacing coils. Fill them out then use them in our selection software or send them in to us.

Send Completed Drawings To:

Fax: 720.457.5031

Need a water coil that is too old and corroded to fix? Emergent coils can custom build a coil for a an exact fit. No matter if it's a 8 row chilled water coil or a 1 row hot water coil, we can get you an exact replacement to fit right in. Check out or list of blank drawings for the right style of coil you need.

Coil Tip: Coil Replacement

Many coil replacements have unique features that can't be duplicated with software. If you can't match your coil in our program, don't hesitate to contact us for a more traditional quote.
