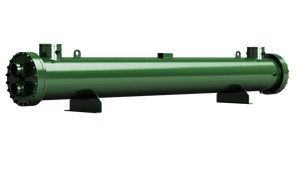

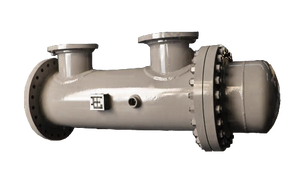

Heat Exchanger

Emergent Coils provides the highest quality heat exchangers custom built to your specifications

Heat Exchanger Applications

We help customers solve difficult fluid flow, heat transfer, and corrosion problems with sophisticated material selection and creative fabrication designs.

Standard heat exchangers typically ship 5-6 weeks after receipt of purchase order and final drawing approval. Rush shipments may be available for new heat exchangers and retube / repair orders.

Emergent Coils provides heat exchangers fabricated to your specifications or cross-referenced with your current make and model for specs. To make recording your specs easier, simply download our blank drawing of a U-Tube Heat Exchanger, then fax or email it back to us.

The heat exchanger brands we replace include:

Industries and Applications using heat exchangers:

  • Aerospace
  • Compressor Cooling
  • Food & Beverage
  • Healthcare
  • HVAC
  • Industrial
  • Marine Applications
  • Metals & Mining
  • Oil & Gas
  • Petrochemical (processing and refining)
  • Pharmaceuticals
  • Power Generation
  • Pulp & Paper
  • Refrigeration

Heat Exchanger Capabilities

U-Tube Heat Exchangers are fabricated in accordance with ASME Section VIII, Division I, and TEMA Class C.

  • Design pressure and temperature of 150 PSIG @ 375F for shell & tube-side.
  • Standard materials of construction: steel head or fabricated bonnet, steel tube sheet, 3/4" OD x .049 wall (18 bwg) seamless copper or .065 wall (16 bwg) welded carbon steel u-tubes.
  • Steel shell with up to (4) baffles, and (1) complete set of fiber composite gaskets. Units are available in 2, 4, or 6 pass configurations.

Design / Fabrication capabilities include:

  • New and replacement units
  • 4" Nominal to 60" Nominal
  • Shell and tube type exchangers
  • Double wall tube heat exchangers
  • Type BEM/BEU
  • Double wall vented tube type
  • Double pipe type exchangers
  • Pressure vessels
  • Aftercoolers
  • Replacement fabricated heads and nozzles
  • Tanks and weldments
  • Standard and specialty alloys (see the List of Alloys below)

List of Alloys:

  • Carbon Steel
  • Copper
  • 90/10 Cupro-Nickel
  • 80/20 Cupro-Nickel
  • 70/30 Cupro-Nickel
  • Inconel®
  • Incoloy®
  • Admiralty Brass
  • 304/L Stainless Steel
  • 316/L Stainless Steel
  • 317/L Stainless Steel
  • 321/L Stainless Steel
  • Duplex
  • Alloy 20
  • Monel® 400
  • Hastelloy® B
  • Hastelloy® C
  • Titanium
  • Aluminum
  • Nickel 200
  • AL-6XN
