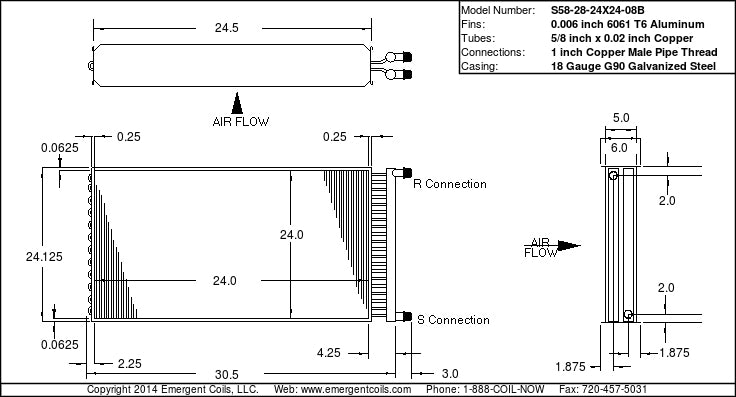

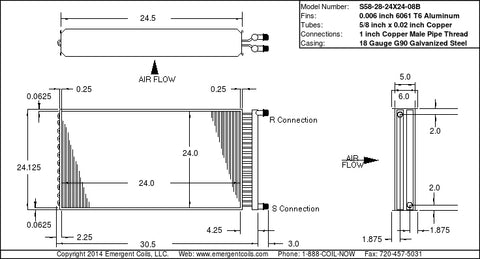

S58-28-24X24-08B

5/8 inch tube, 2 row, 8 fins per inch, 24 inches tall by 24 inches inches wide headered hot water booster coil with slip & drive casing and 1 inch MPT connections.

3-4 week lead time

Specifications
Performance

Type

Hot Water Coil
Style

Slip & Drive
Rows

2
Height

24.0 inches
Length

24.0 inches
Tubes

5/8 inch x 0.02 inch Copper
Fins

0.006 inch 6061 T6 Aluminum
Connections

1 inch Copper Male Pipe Thread
Casing

18 Gauge G90 Galvanized Steel

Performance characteristics may vary depending on your application. The following represents the performance of this coil under typical heating conditions. For other conditions, we may be able to provide performance data specific to your situation; just send us an email at sales@emergentcoils.com with the specific conditions.

Capacity

105685 BTU
Air Flow Rate

2200 SCFM
Entering Air Temp

55.0 °F
Leaving Air Temp

99.33 °F
Air Pressure Drop

0.18 inches of water
Entering Fluid Temperature

180.0 °F
Leaving Fluid Temperature

160.12 °F
Fluid Pressure Drop

6.806 feet of water
